794619-6
Manufacturer:
TE Connectivity
Mfr.Part #:
794619-6
Datasheet:
Description:

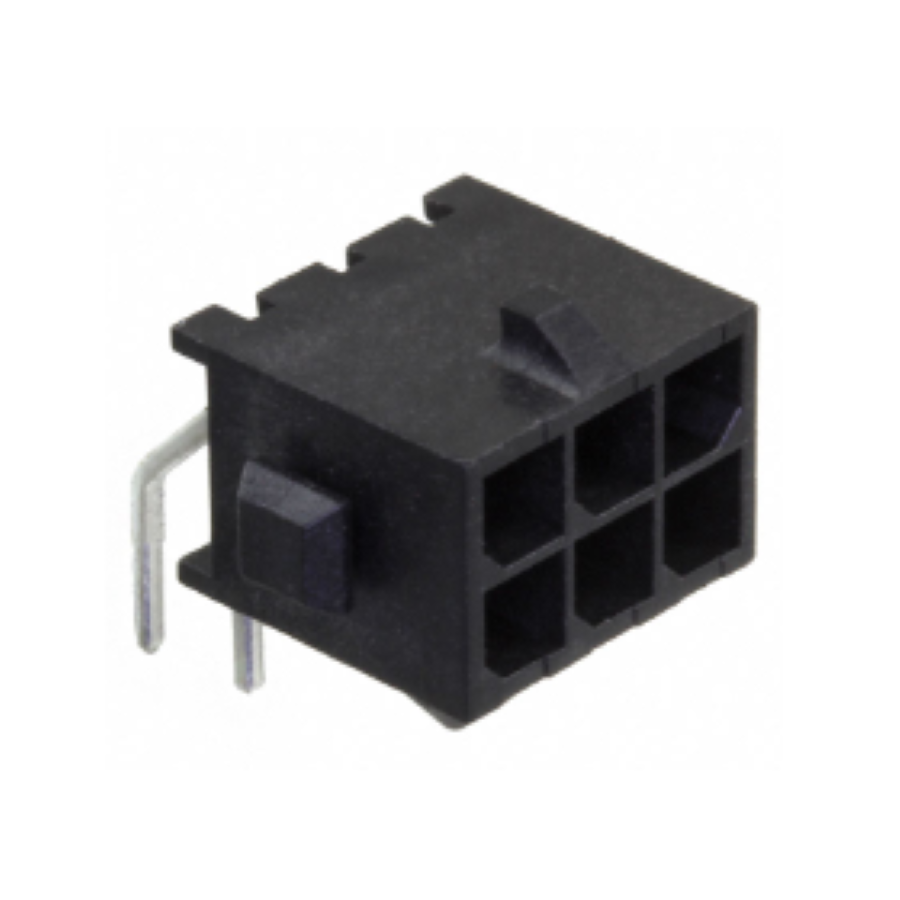

Headers and Wire Housings Through Hole Header, Pin, Plug Number of Positions:6 Pitch:3 mm
| Parameter | Value |
|---|---|
| Termination | Through Hole |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bulk |
| Lead Free | Contains Lead |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Gold |
| Lead Length | 3.18 mm |
| Contact Material(Contact Finish) | Brass |
| Pitch | 3 mm |
| Current Rating | 5 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Right Angle |
| Color | Black |
| Gender | Pin (Male) |
| Number of Contacts | 6 |
| ELV | Non-Compliant |
| Connector Type | Header, Pin, Plug |
| Number of Positions | 6 |
| Number of Rows | 2 |
| Row Spacing | 3 mm |
| Housing Material | Nylon |
| Fastening Type | Ramp |
| Housing Color | Black |
